Coil Steel Feeler Gauges, 0.001 in, 25 ft Length

Features

• Feeler gage is made from 1/2-inch wide spring steel stock, close grain C1095 high carbon steel
• Material is ground and polished to precision tolerances
• Thicknesses are clearly etched every 6-inch in decimal and metric

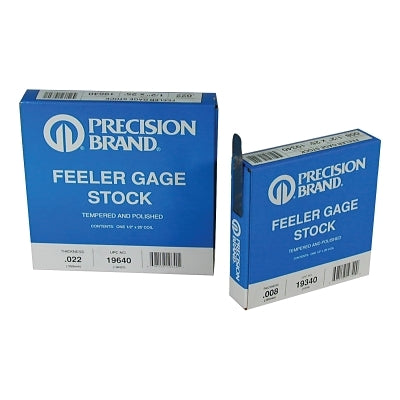

• Feeler gage stock is packaged in 5-inch or 12-inch flat lengths, 25 feet coils and in convenient assortments
• 0.001-inch to 0.023-inch coils are conveniently packaged in dispenser boxes

Specifications

• Length [Nom]: 25 ft
• Material: C1095 High Carbon Steel
• Measuring System: Inch
• Packing Type: Roll
• Quantity: 25 FT/COIL
• Thickness [Nom]: 0.001 in
• Thickness Tolerance (-) [Min]: 0.00012 in
• Thickness Tolerance (+) [Max]: 0.00012 in
• Type: Coiled Feeler Gage
• Usage:
  • Manufacturing Tool and Die
  • Maintenance Operations
• Width [Nom]: 1/2 in
