Home » L 4000 Series Light and Power Cord Reel, 12/3 AWG, 20 A, 45 ft Cord, Single
Reelcraft

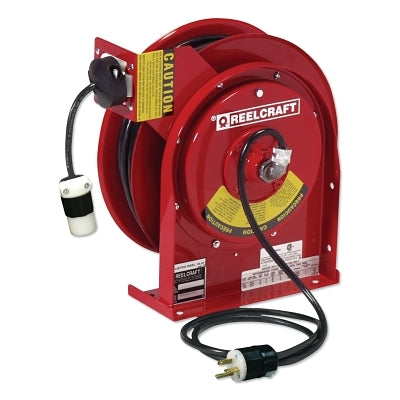

L 4000 Series Light and Power Cord Reel, 12/3 AWG, 20 A, 45 ft Cord, Single

SKU: A00157716 Barcode: 699567005414
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Reelcraft
  • SKU A00157716
  • Barcode 699567005414
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # L45451233A

Features

  • Robotically welded steel base offers maximum strength and consistent quality
  • A robust collector ring assures maximum conductivity current flow
  • Declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Only the highest quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life
  • Durable abrasion and corrosion resistant baked-on powder coat finish

Specifications

  • Amps [Nom]: 20 A
  • Conductor Size 1: 12/3 AWG
  • Cord Length: 45 ft
  • Cord Type: SJEOOW
  • End Type:
    • Inlet Straight Blade Plug
    • Outlet Single
  • Includes:
    • Cord
    • Reel
  • Material: Steel
  • NEMA/IEC Configuration:
    • 5-20P Inlet
    • 5-20R Outlet
  • Series: L4000
  • Type: Single Receptacle Retractable Power Cord Reel
  • Voltage [Nom]: 125 V
