Home » Series 37 Inside Lock-Joint Transfer Caliper, 0 to 12 in, Flat Leg
L.S. Starrett

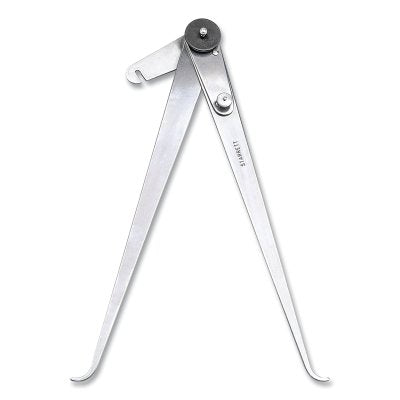

Series 37 Inside Lock-Joint Transfer Caliper, 0 to 12 in, Flat Leg

SKU: A00146121 Barcode: 49659502503
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand L.S. Starrett
  • SKU A00146121
  • Barcode 49659502503
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # 50250

Features

  • Once legs have been set to approximate size and joint locked, final adjustment is made by a few turns of the knurled adjusting nut
  • Joint can be quickly and firmly locked by a partial turn of the large knurled disc
  • Ruggedly constructed legs from high grade steel and are well-shaped and nicely finished

Specifications

  • Finish: Polished Steel
  • Height [Nom]: 1.400 in
  • Inside Jaw Depth: .75 in
  • Length [Nom]: 13.800 in
  • Material: Steel
  • Measurement Type: Outside
  • Range [Max]: 12 in
  • Range [Min]: 0 in
  • Type: 37-12 Caliper, Inside, 12" Size and Capacity, Flat Leg
  • Width [Nom]: 1.600 in
  • Wt.: 0.85 lb
