Home » 1014 Series Latched Swivel Hoist Hook, Size 11 Painted Orange
Campbell

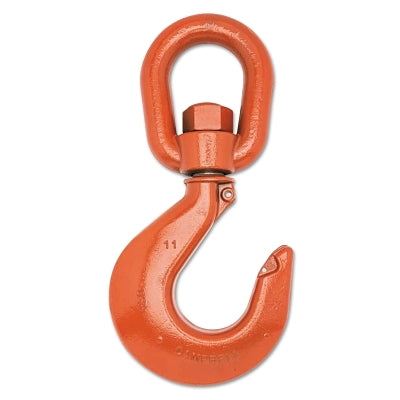

1014 Series Latched Swivel Hoist Hook, Size 11 Painted Orange

SKU: A00117046 Barcode: 20418295614
In stock
Usually ships within 24 hours

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Campbell
  • SKU A00117046
  • Barcode 20418295614
  • Unit of Measurement EA
  • Country of Origin US
  • Manufacture Part # 3953115PL

Features

  • All hooks are drilled for latch kits
  • Designed only to retain slings and rigging attachments
  • Not designed to support the load

Specifications

  • Bail Size: 1-1/4 in
  • Distance Between Points of Lift (Headroom) [Nom]: 12-1/2 in
  • Eye Outer Size: 6 in
  • Finish: Painted Orange
  • Hook Opening: 2-9/32 in
  • Hook Size: 11
  • Inner Length [Nom]: 2-3/4 in
  • Inner Width [Nom]: 3-1/2 in
  • Length [Nom]: 15 in
  • Locking Type: Spring Loaded Latch
  • Material: Alloy Steel
  • Mounting: Swivel Eye
  • Overall Length [Nom]: 15 in
  • Type: Swivel Hoisting Hook
  • Working Load Limit: 11 tons
