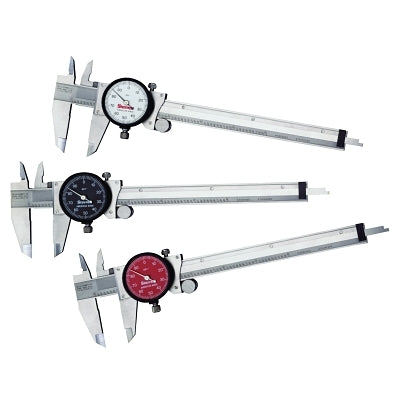

120 Series Dial Caliper, 0 to 9 in, Stainless Steel Tip, White Display

Features

• Knife-edge contacts for both inside and outside measurements
• One hand use with the thumb-operated, fine adjustment roll
• Lock screw for dial bezel
• Lock screw for holding the sliding jaw in position
• Positive, split-gear anti-backlash control

Specifications

• Accuracy: 0-6 in/(+/-.001 in)
• Body Material: Stainless Steel
• Case Material: Plastic
• Display Color: White
• Display Type: Dial
• Finish: Stainless Steel
• Graduation(s): .001 in
• Height [Nom]: 2 in
• Includes: Plastic Case
• Inside Jaw Depth: .75 in
• Length [Nom]: 9.700 in
• Lower Jaw Length: 5/8 in
• Material: Stainless Steel
• Measurement Type: Outside
• Model: 120A-9
• Outside Jaw Depth: 1-1/2 in
• Outside Range Min - Max: 0 to 9 in
• Range [Max]: 9 in
• Range [Min]: 0 in
• Range/Revolution: 0.1 in
• Style: Dial
• Tip Material: Stainless Steel
• Type: Dial Caliper
• Upper Jaw Length: 1-1/2 in
• Usage: Inside, Outside and Depth Dimensions
• Width [Nom]: 3.400 in
• Wt.: 0.06 lb
