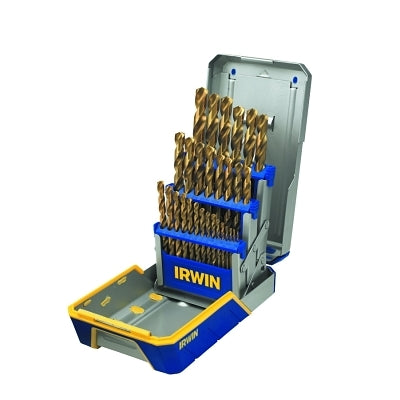

29-pc Titanium Metal Index Drill Bit Sets, 1/16 in - 1/2 in Cut Dia.

Features

• Titanium nitride coating extends cutting edge life up to 6x
• 135-degree split point tip starts on contact and cuts with less force
• Reduced shank above 3/8 in allows the use of larger drill bits in a 3/8 in chuck
• Tap and Drill selection chart for convenient reference
• Automatic indexing for easy bit access and identification

Specifications

• Applicable Materials: Metal
• Applications:
  • Repetitive Metal Drilling w/Portable Drills
  • Stationary Drill Press
• Cutting Diam [Max]: 1/2 in
• Cutting Diam [Min]: 1/16 in
• Cutting Diam [Nom]: 1/16 -1/2 in
• Cutting Edge Material: HSS
• Finish: TiN
• Graduation(s): 1/64 in
• Includes:
  • 29-Piece Set with Drill Bit Sizes 1/16 in to 1/2 in Graduating in 1/64 in Increments
  • Metal Index Case
• Length Group: Jobber
• Material: Titanium
• Measurement Type: Inch
• Point Angle: 135 °
• Point Shape: Split Point
• Quantity: 29 per set
• Shank Type: Reduced
• Spiral Angle: CW
• Wt.: 4.75 lb
