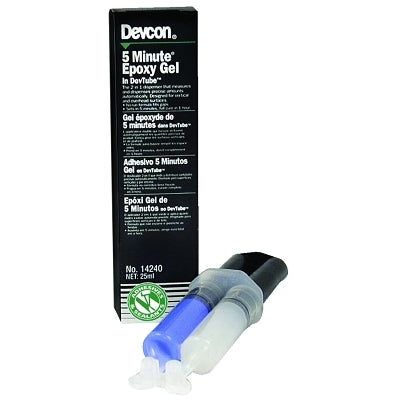

5 Minute Epoxy Gel, 25 mL, Dev-Tube, Amber/Opaque

Features

• Fast-curing, thixotropic, non-migrating adhesive designed for filling gaps and bonding rough or smooth surfaces
• Disappearing blue coloring tells you when the product is thoroughly mixed for easy use
• Good solvent resistance to gas, oil, and other solvents
• Non-sag which makes it ideal for use on vertical surfaces
• Excellent gap filling qualities without tremendous shrinkage

Specifications

• Adhesive Tensile Shear: 2
• Applicable Materials:
  • Ceramic
  • Concrete
  • Metal
  • Plastic
  • Wood
• Applications:
  • Encapsulating
  • Potting
  • Structural Bonding
• Capacity Vol. [Nom]: 25 mL
• Chemical Compound: Epoxy
• Color:
  • Amber
  • Opaque
• Dielectric Strength: 440 V/mil
• Fix Cure Time @ Temp.: 10 min to 15 in @ 72 F
• Full Cure Time @ Temp.: 48 hr
• Gap Fill [Nom]: 0.01 in to 0.05 in
• Hardness [Nom]: 80 Shore D
• Packing Type: Dev-Tube
• Physical Form:
  • Liquid
  • Viscous
• Ratio: 1:1
• Resistance:
  • Corn Oil
  • Cutting Oil
  • Gas
  • Kerosene
  • Mineral Spirits
  • Motor Oil
  • Other Solvents
• Specific Gravity [Nom]: 1.16
• Temp. Range [Max]: 200 F
• Temp. Range [Min]: -40 F
• Tensile Strength [Nom]: 2
• Viscosity [Nom]: 10
• Working Time [Max]: 7 min
• Working Time [Min]: 4 min
• Working Time [Nom]: 4 min to 7 min @ 72 F
