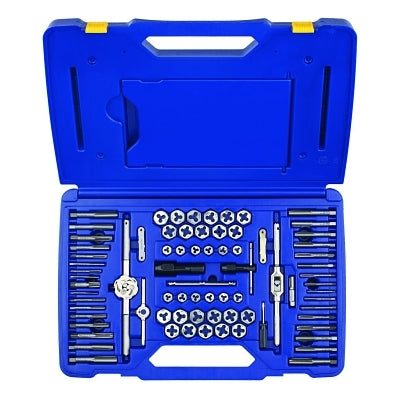

76-pc Machine Screw / Fractional / Metric Tap & Hex Die Set

Features

• Designed to ensure that bolts fit tightly and anchor securely.
• Plug taps have 3 to 5 chamfered threads and are for general purpose applications.
• 4-flute design ensures fast, easy chip clearance.
• High carbon steel hexagon dies are ideal for cutting right-hand external threads.
• Hex head shape is designed for use in die stock and adjustable wrenches.

Specifications

• Die Type: Hexagon
• Includes:
  • 76-pc set in plastic case includes the following items: Machine Screw Plug Tap and 5/8 in Hexagon Dies in sizes: 4 - 40 NC
  • 6 - 32 NC
  • 8 - 32 NC
  • 10 - 24 NC
  • 10 - 32 NF
  • 12 - 24 NC Fractional Plug Tap and 1 in Hexagon Dies in sizes: 1/4 in - 20 NC
  • 1/4 in - 28 NF
  • 5/16 in - 18 NC
  • 5/16 in - 24 NF
  • 3/8 in - 16 NC
  • 3/8 in - 24 NF
  • 7/16 in - 14 NC
  • 7/16 in - 20 NF
  • 1/2 in - 13 NC
  • 1/2 in - 20 NF Metric Plug Tap and 5/8 in Hexagon Dies in sizes: 3mm - 0.50
  • 4mm - 0.70
  • 4mm - 0.75
  • mm - 0.80
  • 5mm - 0.90
  • 6mm - 1.00 Metric Plug Tap and 1 in Hexagon Dies in sizes: 7mm - 1.00
  • 8mm - 1.00
  • 8mm - 1.25
  • 9mm - 1.00
  • 9mm - 1.25
  • 10mm - 1.25
  • 10mm - 1.50
  • 11mm - 1.50
  • 12mm - 1.50
  • 12mm - 1.75 Pipe Thread Plug Tap and 1 in Hexagon Dies in sizes: 1/8 in - 27 NPT
  • 1/8 in - 28 BSP Threading Tools: Adjustable Die Stock - 1 in Dies
  • Plain Die Stock - 5/8 in Hexagon Dies
  • Adj. Handle Tap Wrench - Taps No. 0 to 1/2 in
  • Two-in-One Tap Wrench - Taps 1/4 in to 1/2 in
  • T-Handle Wrench - Taps No. 0 to 1/4 in
  • 16 Leaf Metric Thread Pitch Gauge
  • 18 Leaf Standard Thread Pitch Gauge
  • Empty Plastic Case For 26377
• Material: High Carbon Steel
• Quantity: 76 per case
• Tap Type: Plug
