Home » Air King 2-Lug NPT End, 3/4 in (NPT) M, 1-3/4 in dia x 2-1/2 in W x 2-13/16 in H, Iron
Dixon Valve

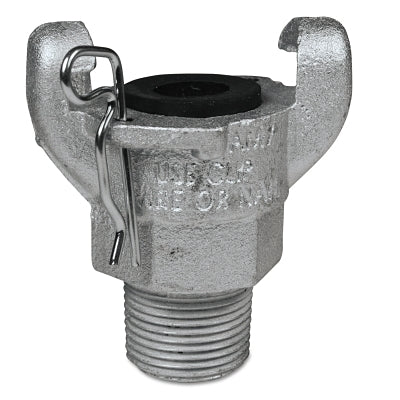

Air King 2-Lug NPT End, 3/4 in (NPT) M, 1-3/4 in dia x 2-1/2 in W x 2-13/16 in H, Iron

SKU: A00128421
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Dixon Valve
  • SKU A00128421
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Manufacture Part # AM7

Features

  • Safety clip included
  • Supplied with rubber washer (AWR4)
  • Brass, brass (global investment cast), iron, or 316 stainless steel construction
  • Pressure rating of 150 psi at ambient temperature 70 F

Specifications

  • Body Material: Iron
  • Connection Type: NPT
  • Dia. [Nom]: 1-3/4 in
  • Height [Nom]: 2-13/16 in
  • Includes:
    • Rubber Washer (AWR4)
    • Safety Clip
  • Male Thread: 3/4 in (NPT)
  • Operating Pressure [Max]: 150 psi
  • Operating Temp. [Max]: 160 F
  • Operating Temp. [Min]: -20 F
  • Quantity: 1 EA/EA
  • Thread Size [Nom]: 3/4 in
  • Type: 2-Lug Male NPT End
  • Width [Nom]: 2-1/2 in
