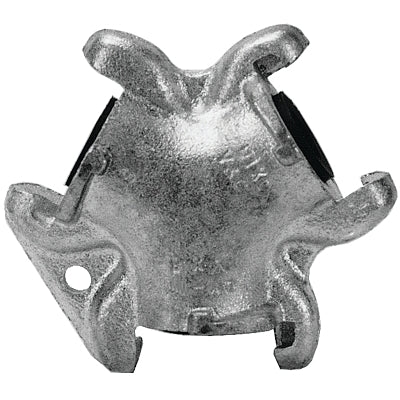

Air King 2-Lug Triple Connection, 5/16 in dia x 4-9/32 in W x 3-3/4 in H, Brass (Global Investment Cast)

SKU: A00116776
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Dixon Valve
  • SKU A00116776
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # AM10

Features

  • Safety clip included
  • Supplied with rubber washer (AWR4)
  • Brass (global investment cast) or iron construction
  • Pressure rating of 150 psi at ambient temperature 70° F

Specifications

  • Body Material: Brass (Global Investment Cast)
  • Dia. [Nom]: 5/16 in Thru
  • Height [Nom]: 3-3/4 in
  • Includes:
    • (2) Rubber Washers (AWR4)
    • (2) Safety Clips
  • Operating Pressure [Max]: 150 psi
  • Operating Temp. [Max]: 160° F
  • Operating Temp. [Min]: -20° F
  • Quantity: 1 EA/EA
  • Type: 2-Lug Triple Connection
  • Width [Nom]: 4-9/32 in
