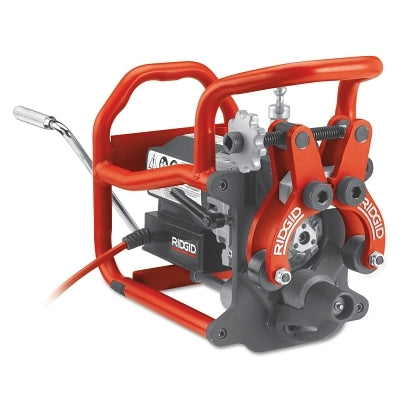

B-500 Transportable Pipe Beveller, 115 V, 4 in to 12 in

Features

• Quick to set-up and ready to use in minutes
• Accurate bevel level around diameter of the pipe allows for the optimal number of cover passes
• Clamp system firmly secures tool to the pipe
• Spark-free operation
• Pipe is cool to the touch immediately afterward

Specifications

• Amps [Nom]: 13A
• Applicable Materials: Steel Pipe
• Bevel Angles:
  • 37-1/2° (Standard)
  • 30° and 45° (with Optional Cutter Heads)
• Body Material: Steel
• Capacities: 4 in Pipe and Larger, Flat Plate
• Cutting Thickness [Max]: .50 in
• Cutting Thickness [Min]: .188 in
• Frequency [Nom]: 950 RPM
• Includes:
  • Beveler
  • Manual Crank Handle
  • 37-1/2° Cutter Head
  • 6 - 4 Edged Inserts
  • Torque Driver and Screws
• Power Source: 1.2 HP
• Type: Pipe Beveler
• Voltage [Nom]: 115 V
• Wt.: 52.5 lb
