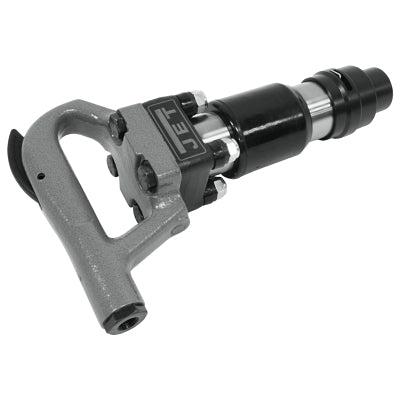

Chipping Hammers, Round Shank, 14 in Long

Features

• Heavy-duty, industry-proven valve design
• Heat-treated cylinder and piston for added durability
• Ergonomic "D" style forged handle with outside trigger
• Easy serviceability with the four-bolt backhead
• Comes with standard type retainer

Specifications

• Air Consumption [Max]: 34 cfm
• Bore Diam [Nom]: 1 3/16 in
• Bushing Size: 0.68 in
• Bushing Type: Round
• Cycle Rate [Nom]: 2
• Handle Type: D Style
• Hose Size [Nom]: 1/2 in
• Impact [Nom]: 17 ft/lb @ 90 psi
• Inlet Size: 3/8 in NPT
• Length [Max]: 14 in
• Noise Level [Nom]: 95 dba
• Pressure [Nom]: 90 psi
• Stroke Length [Nom]: 3 1/32 in
• Type: Chipping
• Vibration [Max]: 15 m/s
• Wt.: 18 lb
