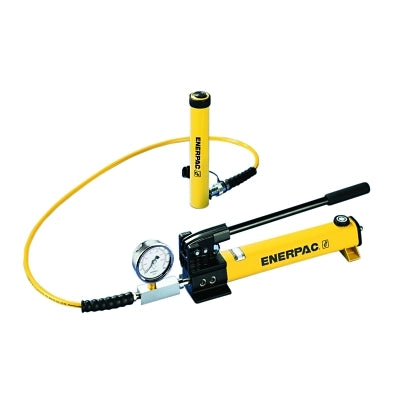

Composite Hand Pump, 2-Speed, 55 cu in Useable Oil

Features

• Lightweight, compact design
• Handle lock for easy carrying
• Lower handle effort minimizes operator fatigue
• Internal pressure relief valve for overload protection
• Large oil capacities to power a wide variety of cylinders and tools

Specifications

• Height [Nom]: 7 in
• Length [Nom]: 21 in
• Maximum Handle Effort: 93 lb
• No. of Speeds: 2
• Oil Displacement Per Stroke (1st Stage): 0.687 cu in
• Oil Displacement Per Stroke (2nd Stage): 0.151 cu in
• Operating Pressure @ Volume/1Stroke:
  • 200 psi @ 0.687 cu in
  • 10000 psi @ 0.151 cu in
• Operating Pressure [Max]: 10000 psi
• Operating Pressure [Min]: 200 psi
• Type: Two-Speed
• Useable Oil Cap. [Max]: 55 cu in
• Width [Nom]: 4-3/4 in
