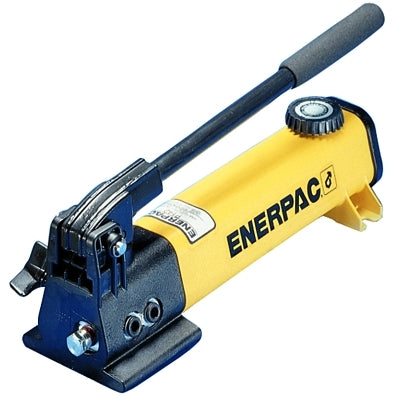

Composite Hand Pumps, Two-Speed, 20 cu in Useable Oil Cap. Max

Features

• Lightweight, compact design
• Handle lock for easy carrying
• Lower handle effort minimizes operator fatigue
• Internal pressure relief valve for overload protection
• Large oil capacities to power a wide variety of cylinders and tools

Specifications

• Height [Nom]: 5.63 in
• Length [Nom]: 13 1/4 in
• Maximum Handle Effort: 78 lb
• No. of Speeds: 2
• Oil Displacement Per Stroke (1st Stage): 0.221 cu in
• Oil Displacement Per Stroke (2nd Stage): 0.055 cu in
• Operating Pressure @ Volume/1Stroke:
  • 200 psi @ 0.221 cu in
  • 10
• Type: Two-Speed
• Useable Oil Cap. [Max]: 20 cu in
• Width [Nom]: 3 3/4 in
• Wt.: 4 1/2 lb
