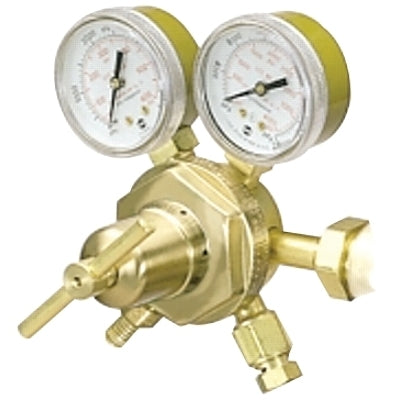

CutSkill TPR 250 Single Stage Light Duty Inert Gas Regulator, 10 to 250 psig Flow Range, 250 psig Inlet Pressure
Payment details
Couldn't load pickup availability
- Brand Victor
- SKU A00131238
- Unit of Measurement Each
- Package Quantity 1 EA = 1 EA
- Country of Origin MX
- Manufacture Part # 7819135
Features
- Forged brass body and housing cap
- Internal relief valve
- Single stage construction
- Stem type seat mechanism
- Neoprene diaphragm
Specifications
- Body Material: Forged Brass
- Depth [Nom]: 4-1/4 in
- Flow Range: 10 - 250 psig
- Gas Type: Inert Gas
- Gauge Size: 2 in
- Handle Type: T-Handle
- Height [Nom]: 5-1/8 in
- Inlet Connection: CGA 580
- Inlet Pressure [Max]: 3000 psig
- Length [Nom]: 6.38 in
- Outlet Connection: 1/4 in - 37 Flare
- Outlet Pressure [Max]: 500 psig
- Outlet Pressure [Min]: 10 psig
- Packing Type: Boxed
- Type: Regulator
- Width [Nom]: 6-3/8 in
