Home » Digital Clamp Meters, 5 Functions, -14 to +1000 Deg F Temp Range, 60 Mohm
Klein Tools

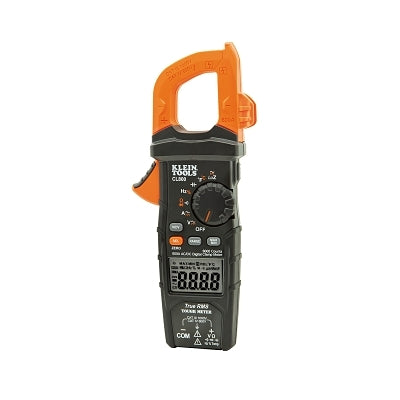

Digital Clamp Meters, 5 Functions, -14 to +1000 Deg F Temp Range, 60 Mohm

SKU: A00118589 Barcode: 92644690167
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Klein Tools
  • SKU A00118589
  • Barcode 92644690167
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # CL800

Features

  • Measures AC current via the clamp and AC/DC voltage, resistance and continuity via test-leads
  • Thermocouple probe measures temperature
  • Built to withstand a 3.3 ft drop

Specifications

  • Amps [Max]: 600 A
  • Applications:
    • AC/DC Voltage
    • Capacitance
    • Continuity
    • Frequency
    • Resistance
  • Capacitance [Max]: 6000 µF
  • Conductor Resistance [Max]: 60 MO
  • Display Type: LCD
  • Electrical Resistance [Max]: 60 MOhm
  • Frequency [Max]: 500 kHz
  • Frequency [Min]: 1 Hz
  • Function: Measures Current
  • Height [Nom]: 1 35/64 in
  • Includes:
    • Carrying Pouch
    • Test Leads
    • Thermocouple with Adapter and Batteries
  • Jaw Opening [Nom]: 1 3/8 in
  • Language: English
  • Length [Nom]: 9 3/32 in
  • No. of Batteries: 2
  • Number of Functions: 5
  • Operating Temp. [Max]: 1000 °F
  • Operating Temp. [Min]: -14 °F
  • Power Source: Battery
  • Temp. Range [Max]: -14 to +1000 °F
  • Type: Clamp-on Meter
  • Voltage [Max]:
    • 1000 VAC
    • 1000 VDC
  • Voltage Type:
    • AC
    • DC
  • Width [Nom]: 3 13/16 in
  • Wt.: 0.78 lb
