Home » EDGE Series 2.0 Regulator, ESS32, Oxygen (O2), 0 to 60 psig, 3000 psig Inlet, CGA 540
Victor

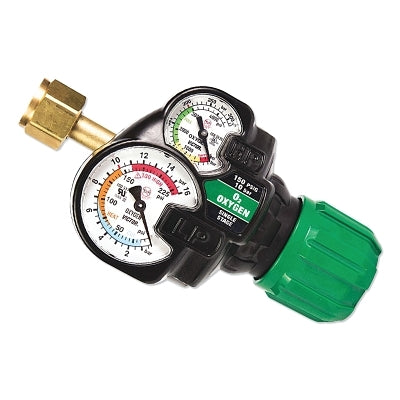

EDGE Series 2.0 Regulator, ESS32, Oxygen (O2), 0 to 60 psig, 3000 psig Inlet, CGA 540

SKU: A00156961 Barcode: 716352604031
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Victor
  • SKU A00156961
  • Barcode 716352604031
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Manufacture Part # 7813627

Features

  • Fully enclosed, highly visible modular gauges for more clarity with robust metal gauge guard
  • Choose from large 2-inch delivery gauge (ESS32) or extra-large 2-1/2 inch delivery gauge (ESS42)
  • Robust seat gives optimum performance
  • Consistent pressure and flow delivery
  • High resistance to oxygen related fires and SLAM knob absorbs impact in the event of cylinder fall

Specifications

  • Capacities: Medium
  • Diaphragm Material: Neoprene
  • Flow Range: 0 to 60 psig
  • Gas Type: Oxygen (O2)
  • Gauge Size: 2 in
  • Inlet Connection: CGA 540
  • Inlet Pressure [Max]: 3000 psig
  • Outlet Connection: 9/16 in-18 RH
  • Outlet Pressure [Max]: 60 psig
  • Series: EDGE 2.0 ESS32
  • Type: Single-Stage Regulator
