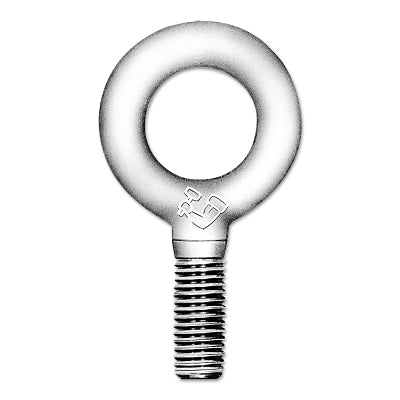

Eye Bolt Shoulder Pattern 1/2 in - 13 UNC

SKU: A00155738 Barcode: 204183166780
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Campbell
  • SKU A00155738
  • Barcode 204183166780
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # 7100224

Features

  • Drop forged are quenched and tempered for optimum strength
  • Furnished with Unified National Coarse (U.N.C.) threads
  • Special threads and lengths

Specifications

  • Eye Inner Diam [Nom]: 1 3/16 in
  • Eye Outer Size: 2 1/16 in
  • Load [Max] @ Angle: 2
  • Load Cap. [Nom]: 2600 lb
  • Material: Forged Carbon Steel
  • Overall Length [Nom]: 1 1/2 in
  • Quantity: 1 per box
  • Thread - TPI or Pitch: 1/2 in - 13 UNC
  • Type: Eye Bolt-Shouldered
  • Wt.: 0.31 lb
