Jet

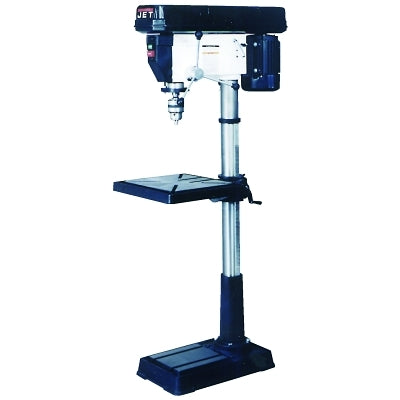

Floor Drill Press, 1 in Steel Capacity, 3/4 in Chuck, 150 - 4,200 rpm

SKU: A00148878 Barcode: 662755104121
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Jet
  • SKU A00148878
  • Barcode 662755104121
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # 354170

Features

  • Cast iron head
  • Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life
  • Massive T-slotted production work table

Specifications

  • Bit/Blade Mounting Size Symbol: Morse #3
  • Center to Side Distance: 10-1/4 in
  • Chuck Size: 3/4 in
  • Chuck to Base Distance [Nom]: 46-3/4 in
  • Chuck to Table Distance: 29-1/8 in
  • Control Type: On/Off
  • Drilling Cap.: 1 in (steel)
  • Includes: Hinged Metal Belt and Pulley Cover
  • No. of Speeds: 12
  • Phase: Single
  • Power Cap. [Max]: 1-1/2 hp
  • Speed [Max]: 4
  • Speed [Min]: 150 rpm
  • Stroke Length [Nom]: 4-5/8 in
  • Table/Plate Length: 18-5/8 in
  • Table/Plate Width: 16-1/8 in
  • Tilt [Max]: 45
  • Voltage [Nom]:
    • 115 VAC
    • 230 VAC
  • Wt.: 288 lb
