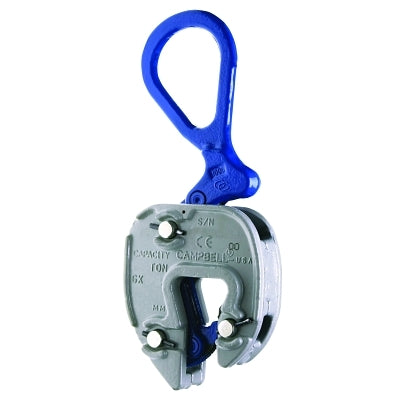

GX Clamp, 1/2 ton WWL, 1/16 in to 5/8 in Grip

Features

• "GX" clamp is entirely drop forged and heat treated
• Can be used for both vertical and horizontal-to-vertical lifting
• Exclusive feature is a patented wear indicator system
• When any of cam's straight line, convex teeth are flattened between unique wear indicator grooves, it is time to change the cam
• Shackle and "G" link combined into one part for fewer stress points and less chance of side loading damage

Specifications

• Grip Cap. [Max]: 5/8 in
• Grip Cap. [Min]: 1/16 in
• Locking Type: Load Activated
• Material: Forged Steel
• Mounting: Fixed Eye
• Neck Depth: 2-3/16 in
• Type: Plate Clamp
• Working Load Limit: 1/2 ton
