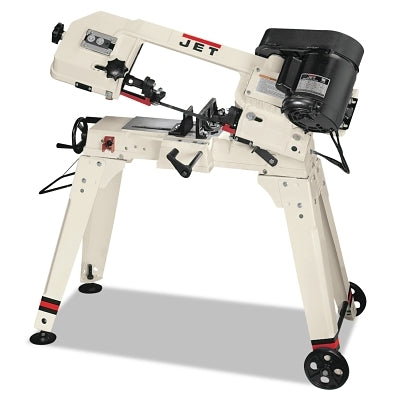

Horizontal/Vertical Bandsaw, Moving Handle, 200 ft/min, 1/2 hp Motor

SKU: A00116613 Barcode: 662755247286
In stock
Usually ships within 24 hours

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Jet
  • SKU A00116613
  • Barcode 662755247286
  • Unit of Measurement EA
  • Country of Origin TW
  • Manufacture Part # 414458

Features

  • Versatility and power when cutting in either a horizontal or vertical position
  • Heavy-duty 14-gauge steel stand
  • Blade drive is a sealed, steel, heat treated worm driving a bronze worm gear in an oil bath
  • Handle and wheels for easy movement
  • Ball bearing supported blade wheel

Specifications

  • Amps [Nom]:
    • 9/4.5 - Full load amps
    • 10.1 - Starting amps
    • 4.9 - Running amps (no load)
  • Blade Length [Nom]: 64 1/2 in
  • Blade Thickness [Nom]: 0.025 in
  • Blade Width [Nom]: 1/2 in
  • Control Type: Toggle on/off switch
  • Cutting Cap. 2:
    • 5 in (Round Stock at 90°)
    • 3 in (Round Stock at 45°)
    • 5 ¾ in x 5 in and 6 in x 2 in (Rectangular Stock at 90°)
    • 4 ½ in x 3 in (Rectangular Stock at 45°)
  • Drive Gearing: Worm Gearing
  • Handle Type: Moving Handle (used to relocate machine and not during operation of machine)
  • Height [Nom]: 41.34 in
  • Length [Nom]: 37 in
  • Linear Speed [Max]: 200 ft/min
  • Linear Speed [Min]: 80 ft/min
  • Type: Horizontal/Vertical Bandsaw
  • Voltage [Nom]: 115 V
  • Voltage Type: AC
  • Width [Nom]: 17.72 in
  • Wt.: 115 lb
