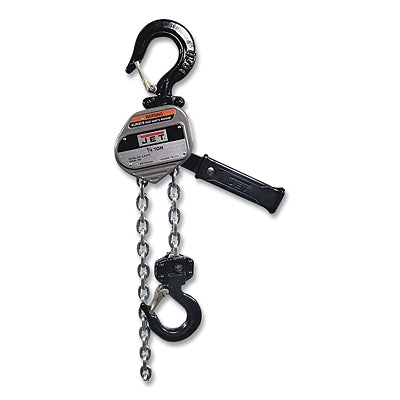

JLA Compact Lever Hoist, 3/4 ton, 10 ft Lift, 5.0 x 1 Fall, 65 lbf

SKU: A00194694 Barcode: 199070180500
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Jet
  • SKU A00194694
  • Barcode 199070180500
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # JT9-375310

Features

  • Weston-style Double Pawl System splits the load to opposite sides of the ratchet gear for added safety
  • Redesigned ergonomic grip provides greater control and increased comfort
  • Industrial-rated alloy steel hooks rotate 360? and slowly stretch to indicate overloading
  • Solid steel, heat-treated load plates and grade 100 zinc-plated chain for corrosion resistance
  • Cast-steel safety latches provide added durability over stamped steel latches and will not bend out of compliance

Specifications

  • Chain Size [Nom]: Grade 100
  • Control Type: Manual
  • Head Room [Nom]: 10.24 in
  • Length [Nom]: 7.09 in Lever
  • Lifting Height/Take-Up [Nom]: 10 ft
  • Material:
    • Alloy Steel Hooks
    • Cast-Steel Safety Latches
    • Steel/Heat Treated Plates
    • Zinc Plated Chain
  • Model: JLA-075-10
  • No. of Falls: 5.0 x 1
  • Pull Force [Max]: 65 lbf
  • Quantity: 1 EA/EA
  • Series: JLA
  • Type: Compact Lever Hoist
  • Wt. Cap. [Nom]: 3/4 ton
