Home » M1 Series Flowmeter Regulator, Oxygen, 1/2 to 15 LPM, 3000 psi Inlet, CGA 540 Nut and Nipple, DISS 1240 Outlet
Western Enterprises

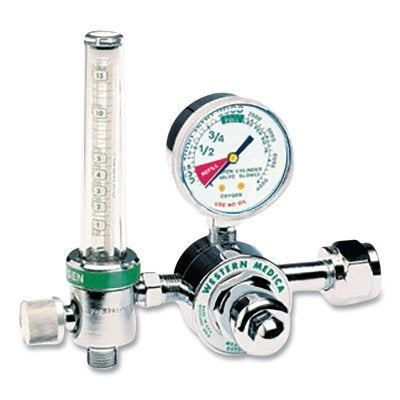

M1 Series Flowmeter Regulator, Oxygen, 1/2 to 15 LPM, 3000 psi Inlet, CGA 540 Nut and Nipple, DISS 1240 Outlet

SKU: A00130122 Barcode: 698944088149
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Western Enterprises
  • SKU A00130122
  • Barcode 698944088149
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # M154015FM

Features

  • Chrome-plated brass body with all brass high-pressure chamber
  • Internal reseating relief valve protects against over-pressurization
  • Sintered filter for additional safety and to extend regulator life
  • Polycarbonate inner and outer tubes provide greater accuracy and durability
  • 15 LPM Oxygen models provide 75 LPM flood minimum

Specifications

  • Diaphragm Material: Neoprene
  • Flow Range: 1/2 to 15 LPM
  • Gas Type: Oxygen
  • Gauge Size: 2 in
  • Includes: Plastic Swivel Hose Barb
  • Inlet Connection: CGA 540 Nut and Nipple
  • Inlet Pressure [Max]: 3000 psi
  • Outlet Type: DISS 1240
  • Type: Single-Stage
