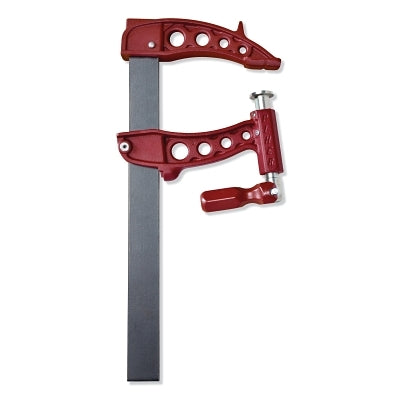

Maxipress R Piston Clamp, 24 in Opening, 6 in Throat Depth, 10,000 N

Features

• Rolled spring steel bar provides maximum pressure held throughout the whole job
• Fixed jaw surface is grooved to achieve maximum grip
• Spring activated back brake keeps moving jaw firmly in position
• Covered double-threaded screw doubles both pressure and speed with a greasing hole for optimum lubrication
• Dismountable, interchangeable easy grip handle

Specifications

• Bar Thickness: 0.4 in
• Bar Width: 1.6 in
• Body Material:
  • Nodular Cast Iron Jaws
  • Heat-Rolled Steel Bar
• Handle Type:
  • Dismountable
  • Interchangeable
  • Nylon and Fiberglass
• Load Cap. [Nom]: 10
• Opening Size [Max]: 24 in
• Spindle Diam: 1.2 in
• Throat Depth [Nom]: 6 in
• Wt.: 9.8 lb
