Home » MMS Series Bar Clamps, 8 in Cap., 2 1/4 in Throat, 400 lb Load
BESSEY

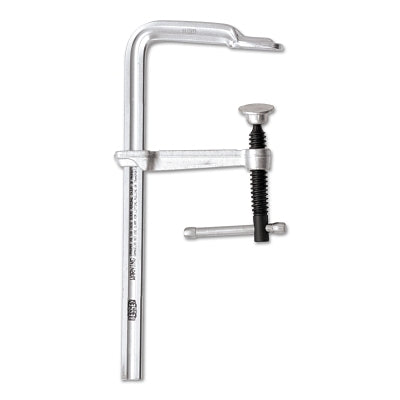

MMS Series Bar Clamps, 8 in Cap., 2 1/4 in Throat, 400 lb Load

SKU: A00120638 Barcode: 788502009997
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand BESSEY
  • SKU A00120638
  • Barcode 788502009997
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin DE
  • Manufacture Part # MMS8

Features

  • For heavier application
  • Heavy-duty pads come with classic rail profiles and a range of clamp openings that will meet most needs
  • Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life
  • The high-strength sliding pin T-Handle is sized according to the clamps capability

Specifications

  • Bar Thickness: 17/32 in
  • Bar Width: 1/4 in
  • Body Material: Steel
  • Capacity [Nom]: 8 in
  • Handle Material: Tempered Steel
  • Handle Type: Sliding Pin T-Handle
  • Height [Nom]: 7/8 in
  • Length [Nom]: 10.103 in
  • Load Cap. [Nom]: 400 lb
  • Locking Type: Thread Locking
  • Material: Steel
  • Opening Size [Max]: 8 in
  • Spindle Diam: 0.465 in
  • Style: Light-Duty
  • Throat Depth [Nom]: 2 1/4 in
  • Width [Nom]: 3.6 in
  • Wt.: 0.7 lb
