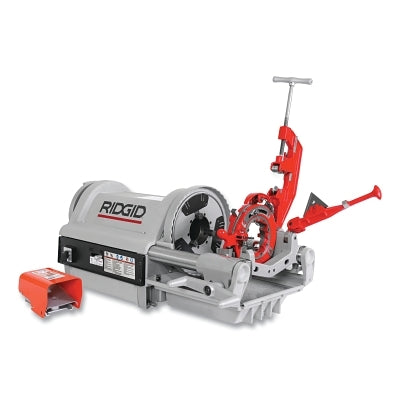

Model 1224 Threading Machine, NPT, 1/4 in to 4 in Pipe Capacity, 120 V AC, 15 A, 36/12 RPM

Features

• An induction motor helps minimize noise
• Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch
• Cam action, rear centering device
• Two-speed gear box with a 3:1 ratio
• Hammer-type chuck with replaceable rocker-action jaw inserts

Specifications

• Amps [Nom]: 15 A
• Frequency [Nom]: 60 Hz
• Includes:
  • (1) 1/4 in to 4 in NPT Hammer Chuck Machine
  • (1) No. 714 (914) 2-1/2 in to 4 in Receding Self-Opening Die Head
  • (1) No. 711 (911) 1/4 in to 2 in Universal Self-Opening Die Head
  • (1) No. 764 Cutter
  • (1) No. 744 Reamer
  • (3) Sets of Dies (1/2 in to 4 in)
  • (1) gal Premium Oil
  • (1) F229 Spare Wheel
  • (1) No. 744 Cutter and No. 764 Cutter
  • (3) Hex Keys
  • 1-3/4 in Combination Wrench
  • (1) Tool Box
• Phase: Single
• Pipe Cap. [Max]:
  • 2 in at 36 RPM
  • 4 in at 12 RPM
• Pipe Cap. [Min]:
  • 1/4 in at 36 RPM
  • 2-1/2 in at 12 RPM
• Power Cap. [Max]: 1-1/2 hp
• Rod Diam. - TPI: 1/4 in to 2 in
• Speed [Nom]: 36/12 RPM
• Threading Cap. [Max]:
  • Geared Threader Sold Separately
  • 6 in (161)
• Threading Cap. [Min]:
  • Geared Threader Sold Separately
  • 4 in (161)
• Type: Model 1224 Machine 120 V AC NPT
• Voltage [Nom]: 120 V AC
