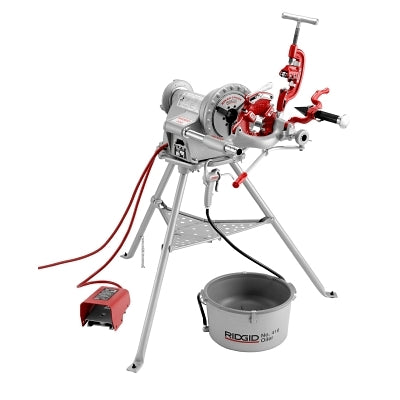

Model 300 Power Drive Threading Machine, NPT, 1/8 in to 2 in Pipe Capacity, 115 V AC, 15 A, 36 RPM, Complete Kit

Features

• Cam-action rear centering device turns with chuck
• Two heavy-duty support bars
• Speed grip chuck with replaceable jaw inserts
• Forward/Off/Reverse switch and integral On/Off foot switch
• Lightweight, portable design

Specifications

• Amps [Nom]: 15 A
• Frequency [Nom]: 25 Hz to 60 Hz
• Includes:
  • (1) 300PD, Tool Only, 115V 25-60Hz 38 RPM NPT (41855)
  • (1) 300PD Clip-On Tool Tray (22638)
  • (1) 811A 1/8 in to 2 in NPT Die Head, Self-Opening, RH (97065)
  • (1) 1/2 in to 3/4 in Universal Alloy Die Set (47745)
  • (1) 1 in to 2 in Universal Alloy Die Set (47750)
  • (1) 360 Cutter Assy (42370)
  • (1) 311 Carriage with Lever (68815)
  • (1) #32 Transport Cart (42575)
  • (1) 341 Reamer Assy (42365)
  • (1) 1206 Stand (42360)
  • (1) Oiler with One Gallon Premium Thread Cutting Oil (10883)
• Phase: Single
• Pipe Cap. [Max]: 2 in
• Pipe Cap. [Min]: 1/8 in
• Power Cap. [Max]: 1/2 hp
• Rod Diam. - TPI: 1/4 in to 2 in
• Speed [Nom]: 36 RPM
• Threading Cap. [Max]:
  • Geared Threaders Sold Separately
  • 4 in (141)
  • 6 in (161)
• Threading Cap. [Min]:
  • Geared Threaders Sold Separately
  • 2-1/2 in (141)
  • 4 in (161)
• Type: Model 300 Power Drive Complete NPT
• Voltage [Nom]: 115 V AC
