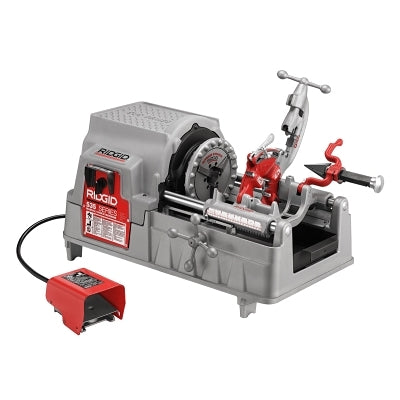

Model 535 Threading Machine, NPT, 1/8 in to 2 in Pipe Capacity, 115 V AC, 15 A, 36 RPM'

Features

• Large chip tray and oil reservoir makes the 535 ideal for longer, uninterrupted threading
• Generous top cover for keeping tools and fittings handy
• High clearance carriage makes threading easier
• Speed Chuck, with three replaceable rocker-action jaws inserts, grips work piece instantly
• Can be used with geared Models 141 and 161 threaders (sold separately)

Specifications

• Amps [Nom]: 15 A
• Frequency [Nom]: 50 Hz to 60 Hz
• Includes:
  • (1) 1/2 in to 2 in NPT Hammer Chuck Machine 36 RPM
  • (1) 341 Reamer Assy with 5-Flute Cone, RH, 1/8 in to 2 in (42365)
  • (1) 3/16 in Hex Key (46030)
  • (1) 820 Cutter Assy (42390)
  • (1) Wheel, Cutter E1032 (44185)
  • (1) Key, Hex 5/32 (46015)
  • (1) 1/2 in to 3/4 in Universal Alloy Die Set (47745)
  • (1) 1 in to 2 in Universal Alloy Die Set (47750)
  • (1) Nu-Clear Thread Cutting Oil (70835)
  • (1) 811A 1/8 in to 2 in NPT Die Head, Self-Opening, RH (97065)
• Phase: Single
• Pipe Cap. [Max]: 2 in
• Pipe Cap. [Min]: 1/8 in
• Power Cap. [Max]: 1/2 hp
• Rod Diam. - TPI: 1/4 in to 2 in
• Speed [Nom]: 36 RPM
• Threading Cap. [Max]:
  • Geared Threaders Sold Separately
  • 4 in (141)
  • 6 in (161)
• Threading Cap. [Min]:
  • Geared Threaders Sold Separately
  • 2-1/2 in (141)
  • 4 in (161)
• Type: 10-Pc Model 535 Threading Machine with Accessories
• Voltage [Nom]: 115 V AC
