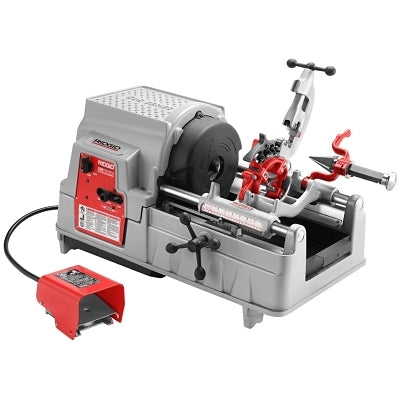

Model 535A Automatic Threading Machine, 1/8 to 2 in Pipe Capacity, 811A Die Head

Features

• 3-speed transmission
• Automatic chuck with four reversible forged jaws
• Can be used with geared threader Model 141
• FOR/OFF/REV and integral safety foot switches
• Generous Top Cover Area for keeping tools and fittings handy

Specifications

• Amps [Nom]: 20 A
• Die Head Type: 811A
• Frequency [Max]: 60 Hz
• Frequency [Nom]: 60.0 Hz
• Includes:
  • 1-Set 1 - 2 in Universal High Speed Dies
  • 1-341 Reamer
  • 1-No. 820 Cutter
  • 1-Spare E-1032 Cutter Wheel
  • 1-Set 1/2 - 3/4 in Universal High Speed Dies
  • 1-Gallon Stainless Steel Premium Oil
  • 2-Hex Wrenches
  • 1-Spare E1032 Cutter Wheel
  • 1-No. 811A Universal Quick-Opening Die Head
• Phase: Single
• Pipe Cap. [Max]: 2 in
• Pipe Cap. [Min]: 1/8 in
• Power Cap. [Max]: 2 hp
• Rod Diam. - TPI: 1/4 in - 2 in
• Speed [Nom]:
  • 16 rpm
  • 46 rpm
  • 58 rpm
• Voltage [Nom]: 115 V
• Wt.: 350 lb
