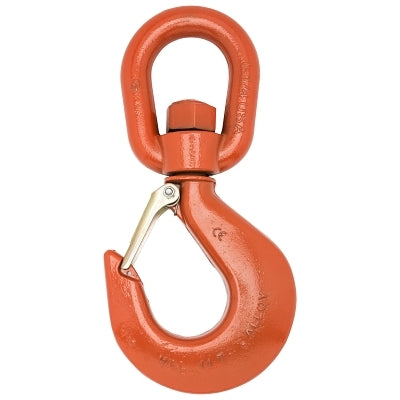

Home » No. 7 Alloy Latched Swivel Hoist Hooks, Bail Size 1 3/32 in, Painted Orange
Apex

No. 7 Alloy Latched Swivel Hoist Hooks, Bail Size 1 3/32 in, Painted Orange

SKU: A00156282 Barcode: 20418306365
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Apex
  • SKU A00156282
  • Barcode 20418306365
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # 3952415PL

Features

  • Drop forged carbon steel or alloy and heat treated
  • All hooks are drilled for integrated latch kits

Specifications

  • Bail Size: 1 3/32 in
  • Distance Between Points of Lift (Headroom) [Nom]: 5 13/16 in
  • Eye Inner Diam [Nom]: 1 1/2 in
  • Eye Outer Size: 2 1/2 in
  • Finish: Painted Orange
  • Height [Nom]: 7 11/32 in
  • Hook Opening: 1 3/32 in
  • Inner Width [Nom]: 1 3/32 in
  • Locking Type: Spring Loaded Latch
  • Material: Alloy Steel
  • Mounting: Swivel Eye
  • Overall Length [Nom]: 7 11/32 in
  • Type: Swivel Hoisting Hook
  • Working Load Limit: 2 ton
  • Wt.: 2.06 lb
