- Brand Campbell
- SKU A00155703
- Unit of Measurement Each
- Package Quantity 1 EA = 1 EA
- Country of Origin US
- Manufacture Part # 7100121
Features
- Drop forged are quenched and tempered for optimum strength
- Furnished with Unified National Coarse (U.N.C.) threads
- Special threads and lengths
Specifications
- Eye Inner Diam [Nom]: 3/4 in
- Eye Outer Size: 1 3/16 in
-
Load [Max] @ Angle:
- 500 lb @ 0
- 70 lb @ 30
- Load Cap. [Nom]: 500 lb
- Material: Forged Carbon Steel
- Overall Length [Nom]: 1 in
- Quantity: 1 per box
- Thread - TPI or Pitch: 1/4 in - 20 UNC

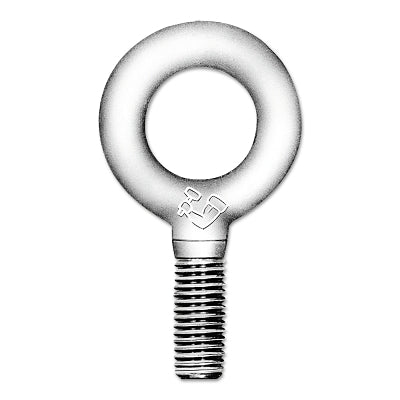

- Type: Eye Bolt
- Wt.: 0.05 lb
