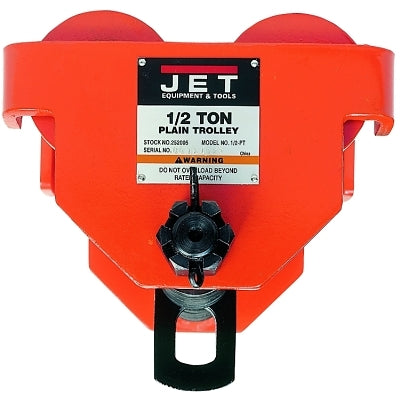

PT Series Plain Trolley, 1/2 Ton, 2 1/2" - 8" Beam Width

Features

• Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
• Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
• Built-in bumper guards on the side plates increase safety and extend trolley life
• Easily adjustable to wide-flange H-beams, standard I-beams or curved track with the included spacer washers

Specifications

• Beam Height [Max]: 19 in
• Beam Height [Min]: 4 in
• Beam Width [Max]: 8 in
• Beam Width [Min]: 2 1/2 in
• Corner Radius [Min]: 39 in
• Load Cap. [Max]: 1/2 ton
• Load Cap. [Nom]: 1/2 ton
• Type: Manual Dragged Trolley
• Wt.: 19 lb
