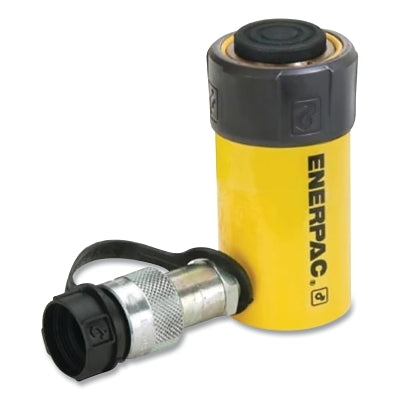

RC Series Single Acting Cylinder, 10 t, 2.13 in Stroke

Features

• Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity
• Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
• Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
• Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
• Trio Spring System for high-strength steel wire improves spring lift

Specifications

• Capacity Wt. [Max]: 10 t
• Collapsed Height: 4.78 in
• Cylinder Effective Area: 2.24 in
• Extended Height [Nom]: 6.91 in
• Includes:
  • CR400 Coupler
  • Dust Cap
• Operating Pressure [Max]: 10
• Stroke Length [Nom]: 2.13 in
• Type:
  • Single-Acting
  • Spring Return
