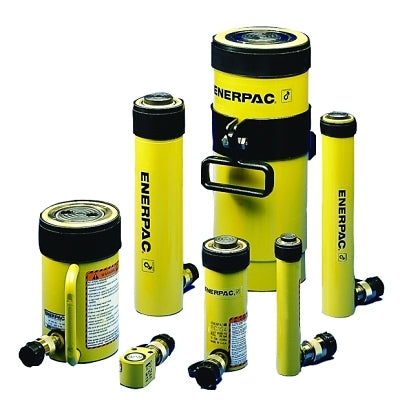

RC Series Single Acting Cylinders, 10 tons, 10.13 in Stroke Length

Features

• Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity
• Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
• Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
• Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
• Trio Spring System for high-strength steel wire improves spring lift

Specifications

• Bore Diam [Nom]: 1.69 in
• Capacity Wt. [Max]: 10 tons
• Collapsed Height: 13 3/4 in
• Cylinder Effective Area: 2.24 sq. in.
• Extended Height [Nom]: 23.88 in
• Includes:
  • CR-400 Coupler
  • Dust Cap
• Oil Cap.: 22.65 cu in
• Operating Pressure [Max]: 10
• Plunger Diam: 1 1/2 in
• Plunger Internal Thread: 1 in - 8
• Stroke Length [Nom]: 10.13 in
• Type: Spring Return
• Wt.: 14 lb
