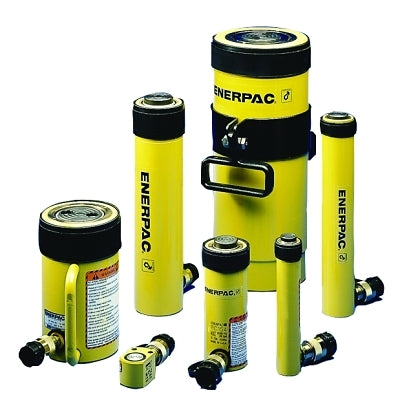

RC Series Single Acting Cylinders, 25 tons, 2 in Stroke Length

Features

• Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity
• Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
• Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
• Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
• Trio Spring System for high-strength steel wire improves spring lift

Specifications

• Bore Diam [Nom]: 2.56 in
• Capacity Wt. [Max]: 25 tons
• Collapsed Height: 6 1/2 in
• Cylinder Effective Area: 5.16 sq. in.
• Extended Height [Nom]: 8 1/2 in
• Includes:
  • CR-400 Coupler
  • Dust Cap
• Oil Cap.: 10.31 cu in
• Operating Pressure [Max]: 10
• Plunger Diam: 2 1/4 in
• Plunger Internal Thread: 1 1/2 in - 16
• Stroke Length [Nom]: 2 in
• Type: Spring Return
• Wt.: 14.3 lb
