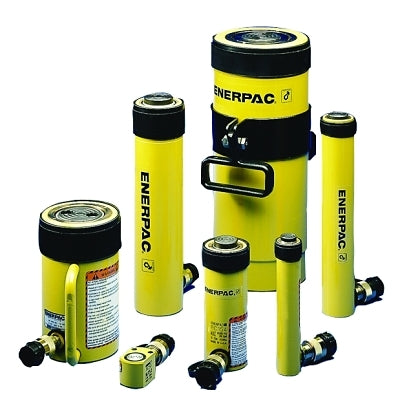

RC Series Single Acting Cylinders, 5 tons, 0.63 in Stroke Length

Features

• Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity
• Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan
• Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load
• Features durable wiper to help prevent contamination from entering the cylinder during retract cycles
• Trio Spring System for high-strength steel wire improves spring lift

Specifications

• Bore Diam [Nom]: 1.13 in
• Capacity Wt. [Max]: 5 tons
• Collapsed Height: 1.63 in
• Cylinder Effective Area: 0.99 sq. in.
• Extended Height [Nom]: 2 1/4 in
• Includes:
  • CR-400 Coupler
  • Dust Cap
• Oil Cap.: 0.62 cu in
• Operating Pressure [Max]: 10
• Plunger Diam: 1 in
• Stroke Length [Nom]: 0.63 in
• Type: Spring Return
• Wt.: 2.2 lb
