Enerpac

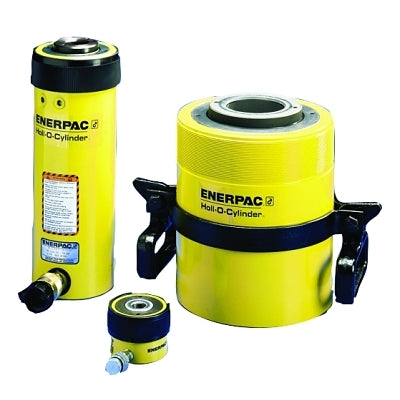

RCH Series Hollow Plunger Cylinders, 12 tons, 3 in Stroke Length

SKU: A00129718 Barcode: 662005302598
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Enerpac
  • SKU A00129718
  • Barcode 662005302598
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # RCH123

Features

  • Baked enamel finish for corrosion resistance
  • Collar threads for easy fixturing
  • Hollow plunger design allows for both pull and push forces
  • Nickel-plated floating center tube on models over 20 tons increases product life

Specifications

  • Bore Diam [Nom]: 2.13 in
  • Capacity Wt. [Max]: 12 tons
  • Collapsed Height: 7 1/4 in
  • Cylinder Effective Area: 2.76 sq. in.
  • Extended Height [Nom]: 10 1/4 in
  • Includes: CR-400 Coupler
  • Oil Cap.: 8.29 cu in
  • Operating Pressure [Max]: 10
  • Plunger Diam: 1.38 in
  • Stroke Length [Nom]: 3 in
  • Type: Spring Return
  • Wt.: 9.8 lb
