Home » RCH Series Hollow Plunger Cylinders, 20 tons, 2 in Stroke Length
Enerpac

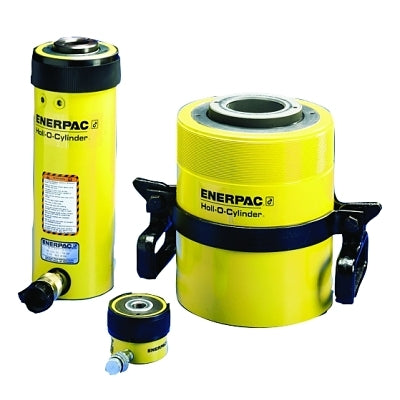

RCH Series Hollow Plunger Cylinders, 20 tons, 2 in Stroke Length

SKU: A00129719 Barcode: 662005302611
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Enerpac
  • SKU A00129719
  • Barcode 662005302611
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # RCH202

Features

  • Baked enamel finish for corrosion resistance
  • Collar threads for easy fixturing
  • Hollow plunger design allows for both pull and push forces
  • Nickel-plated floating center tube on models over 20 tons increases product life

Specifications

  • Bore Diam [Nom]: 2.88 in
  • Capacity Wt. [Max]: 20 tons
  • Collapsed Height: 6.38 in
  • Cylinder Effective Area: 4.73 sq. in.
  • Extended Height [Nom]: 8.38 in
  • Includes:
    • CR-400 Coupler
    • Dust Cap
  • Oil Cap.: 9.46 cu in
  • Operating Pressure [Max]: 10
  • Plunger Diam: 2.13 in
  • Plunger Internal Thread: 1 9/16 in - 16UN
  • Stroke Length [Nom]: 2 in
  • Type: Spring Return
  • Wt.: 17.3 lb
