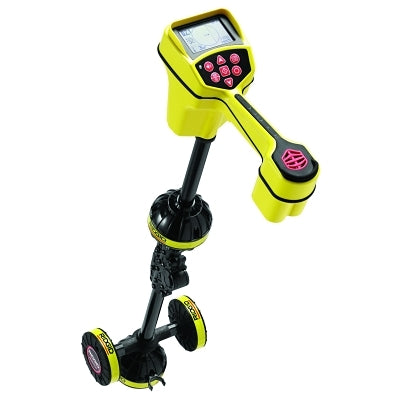

RECEIVER SR-20 UTILITY LOCATOR

Features

• A lightweight yet rugged receiver that provides all the information needed for faster, more accurate locates
• Features easy to use target line and guidance arrows, and proximity signal and signal strength readings to help with difficult locates

Specifications

• Applications: Locator
• Frequencies:
  • Active Line Trace: 128Hz, 1kHz, 8kHz, 33kHz, 51kHz, 93kHz, 200kHz, 262kHz
  • Passive Power Trace: 50Hz, 60Hz, &lt
  • 4 kHz
  • Passive Radio Trace: 4kHz - 15kHz, 15kHz - 36kHz
  • Sonde - 512 Hz
• Height [Nom]: 11 in
• Includes: (4) C-Cell Batteries
• Length [Nom]: 31 in
• Monitor Type: 3 in LCD
• Operating Temp. [Max]: 122 °F
• Operating Temp. [Min]: -4 °F
• Power Source: 4 C-cell Batteries
• Run Time [Nom]: 16 h
• Width [Nom]: 7 in
• Wt.: 3.5 lb
