Home » RHP High Inlet/Delivery Pressure Regulators, Compressed Air, CGA347, 6,000 psi
Western Enterprises

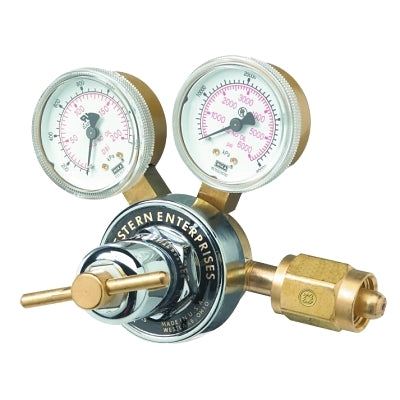

RHP High Inlet/Delivery Pressure Regulators, Compressed Air, CGA347, 6,000 psi

SKU: A00117531 Barcode: 698944043377
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Western Enterprises
  • SKU A00117531
  • Barcode 698944043377
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # RHP24

Features

  • PCTFE seat assemblies withstand high service pressure
  • Dual inlet filters extends regulator service life
  • Dual Safety Relief Valves protects against over pressurization
  • Low friction, replaceable thrust bushing for easy adjustment

Specifications

  • Body Material: Machined Brass
  • Depth [Nom]: 7 in
  • Flow Cap. [Max]: 3
  • Gas Type: Compressed Air
  • Gauge Size: 2 in
  • Height [Nom]: 6 in
  • Inlet Connection: CGA 347
  • Inlet Pressure [Max]: 6
  • Length [Nom]: 4 1/2 in
  • Outlet Connection: 1/4 in. NPT(F)
  • Outlet Pressure [Max]: 180 psi
  • Width [Nom]: 7 in
  • Wt.: 3 lb
