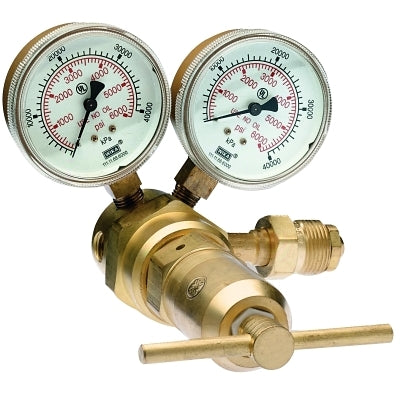

RS Series High Delivery Pressure Regulator, Inert Gas, 0 to 2000 psig, 3000 psig Inlet, CGA 580

SKU: A00130488 Barcode: 698944045500
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Western Enterprises
  • SKU A00130488
  • Barcode 698944045500
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin US
  • Manufacture Part # RS1120

Features

  • Features a compact, reliable piston design
  • Machined brass body and bonnet resists corrosion and extends service life
  • PCTFE seat assembly withstands high service pressures
  • Dual inlet filtering extends regulator life
  • 1/4 inch NPT female outlet, 180 opposed to inlet

Specifications

  • Body Material: Brass
  • Flow Cap. [Max]: 2850 (N2) SCFH
  • Flow Range: 0 to 2000 psig
  • Gas Type: Inert Gas
  • Gauge Size: 2-1/2 in
  • Inlet Connection: CGA 580
  • Inlet Pressure [Max]: 3000 psi
  • Outlet Connection: 1/4 in NPT F
