Home » RSM Series Flat Jac Cylinders, 20 tons, 0.44 in Stroke Length
Enerpac

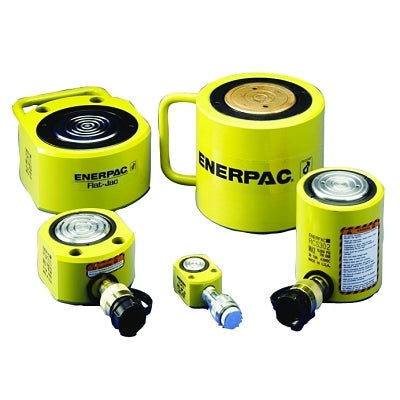

RSM Series Flat Jac Cylinders, 20 tons, 0.44 in Stroke Length

SKU: A00129512 Barcode: 662005302369
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Enerpac
  • SKU A00129512
  • Barcode 662005302369
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # RSM200

Features

  • Compact, flat design for applications where other cylinders will not fit
  • Grooved plunger requires no saddle
  • Hard chrome plated high-quality steel plunger
  • Mounting holes for easy fixturing

Specifications

  • Bore Diam [Nom]: 2.38 in
  • Capacity Wt. [Max]: 20 tons
  • Collapsed Height: 2.03 in
  • Cylinder Effective Area: 4.43 sq. in.
  • Extended Height [Nom]: 2.47 in
  • Includes:
    • CR-400 Coupler
    • Dust Cap
  • Oil Cap.: 1.94 cu in
  • Operating Pressure [Max]: 10
  • Plunger Diam: 2 in
  • Stroke Length [Nom]: 0.44 in
  • Type: Spring Return
  • Wt.: 6.8 lb
