Home » S90 Series Hand Chain Hoist, 1/2-ton, 20 ft Lifting H, 1 Fall, 11 in Head Room, 58-1/2 lb Pull Force
Jet

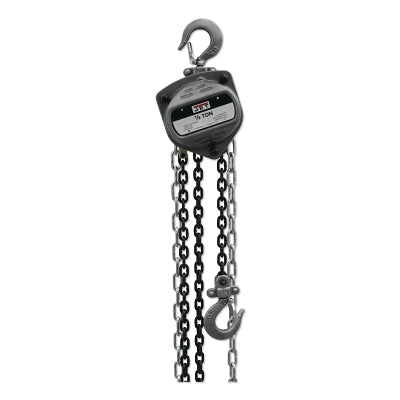

S90 Series Hand Chain Hoist, 1/2-ton, 20 ft Lifting H, 1 Fall, 11 in Head Room, 58-1/2 lb Pull Force

SKU: A00148601 Barcode: 731325218817
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Jet
  • SKU A00148601
  • Barcode 731325218817
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin CN
  • Manufacture Part # 101902

Features

  • Grade 80 black oxide coated load chain for added durability
  • Heat-treated load plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation

Specifications

  • Chain Size [Nom]: 5 x 15
  • Head Room [Nom]: 11 in
  • Lifting Height/Take-Up [Nom]: 20 ft
  • Material:
    • Steel
    • Grade 80 Black Oxide Coated Load Chain
  • Model: S90-050-20
  • Mounting: Hook
  • No. of Falls: 1
  • Power Source: Manual
  • Pull Force [Max]: 58-1/2 lb
  • Quantity: 1 EA/EA
  • Series: S90 Series
  • Type: Contractor Grade Hoist
  • Wt. Cap. [Nom]: 1/2-ton
