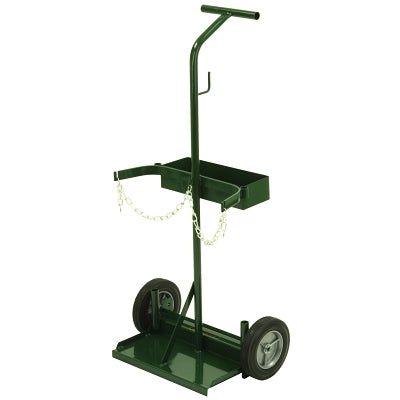

Series 100 Truck, Holds 2 Cylinders, 7-1/2 in to 9-1/4 in dia, 8 in Semi-Pneumatic/B.B. Wheels

Features

• Strong and compact in design having excellent balance and rollability
• All models have a cylinder hold chain and hose supports
• Concealed angle legs prevent load from resting on wheels when truck is stationary
• Handles small to medium cylinders
• Recommended for small shops and garages having hard surface floors

Specifications

• Acetylene Cylinder [Max]: 9-1/4 in
• Bracket Chain Height: 22-3/4 in
• Color: Harper Green
• Cylinder Diam [Max]: 9-1/4 in
• Depth [Nom]: 8 in
• Handle Type: Uni-Handle
• Height [Nom]: 45 in
• No. of Cylinders: 2
• No. of Wheels: 2
• Oxygen Cylinder [Max]: 7-1/2 in
• Platform Depth: 8 in
• Platform Width: 17 in
• Wheel Diam [Nom]: 8 in
• Wheel Type: Semi-Pneumatic, B.B.
• Wheel Width [Nom]: 1-3/4 in
• Width [Nom]: 21-1/2 in
• Wt.: 21 lb
