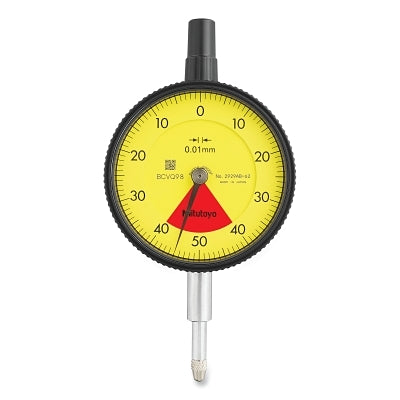

Series 2 Standard Dial Indicator, 40-0-40 Dial, 0.01 mm Graduation, 0.8 mm Range

Features

• The revolutionary stem-bush design for trouble free stem clamping and longer clamping range
• No through screw-hole on the frame for high dust-resistance
• Greater rigidity in the bearing plate for reducing the tracing error (20% and 4-screw mounting for increasing impact resistance)

Specifications

• Accuracy: .009mm
• Dial Reading: 40-0-40
• Graduation(s): 0.01 mm
• Measuring Force [Max]: 2.0 or lessN
• Measuring System: Metric
• Model: Series 2 Standard
• Mounting: 4 Screw
• Operating Type: Mechanical
• Range [Max]: 0 mm
• Range [Min]: 0.8 mm
• Range/Revolution:
  • 0 mm to 0.8 mm
  • 1 Revolution
• Stem Diam: 8 mm
• Type:
  • Dial Indication
  • Metric Standard Type
