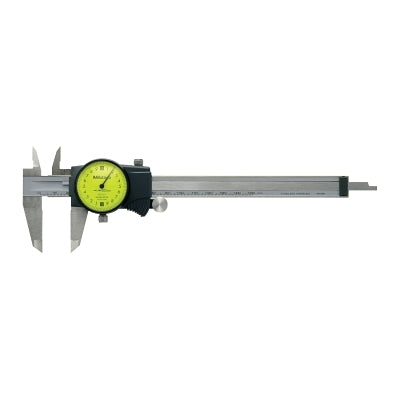

Series 505 Dial Caliper, Outside Range 0 in to 6 in, Stainless Steel

Features

• New designed dial movement for ultra smooth sliding and high shock protection
• Titanium nitride (TiN) coating is applied to the sliding surface to increase wear resistance
• Lock screw for dial bezel and for holding the sliding jaw position

Specifications

• Accuracy: ±0.001 in
• Bar Width: 16 mm
• Case Material: Plastic
• Finish: Titanium Nitride
• Graduation(s): 0.001 in
• Includes: Plastic Case
• Inside Range Min - Max: 0 - 6 in
• Length [Nom]: 231 mm
• Lower Jaw Length: 40 mm
• Measuring System: Inch
• Model: 505-742
• Outside Jaw Depth: 1-9/16 in
• Outside Range Min - Max: 0 in to 6 in
• Quantity: 1 each
• Range [Max]: 6 in
• Range [Min]: 0 in
• Range/Revolution: 0.1 in
• Tip Material: Stainless Steel
• Type: Dial Caliper
• Upper Jaw Length: 21 mm
• Usage: Inside/Outside/Step and Depth Measurement
• Wt.: 175 g
