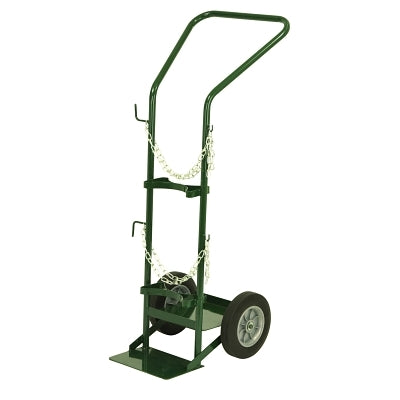

Series 830 Truck, 10-1/2 in and 12-1/2 in dia Cylinders, 14 in Solid Rubber Wheels

Features

• Series 830 is a new design to accommodate a large oxygen cylinder in the back, and a large acetylene cylinder in the front
• This narrow design allows for better maneuverability in narrow aisles where a normal side-by-side cylinder truck cannot go
• SO-2 bolt on tool box is available as an option

Specifications

• Acetylene Cylinder [Max]: 12-1/2 in
• Base Plate:
  • Front 8 in x 12 in
  • Back 11 x 11 in
• Bracket Chain Height:
  • 19 in
  • 34 in
• Color: Harper Green
• Handle Type: Continuous
• Height [Nom]: 49 in
• Includes:
  • (2) Cylinder Hold Chains
  • (2) Hose Reeling Hooks
• No. of Cylinders: 2
• No. of Wheels: 2
• Oxygen Cylinder [Max]: 10-1/2 in
• Platform Width: 24 in
• Wheel Diam [Nom]: 10 in
• Wheel Type: Solid Rubber, B.B.
• Width [Nom]: 20 in
