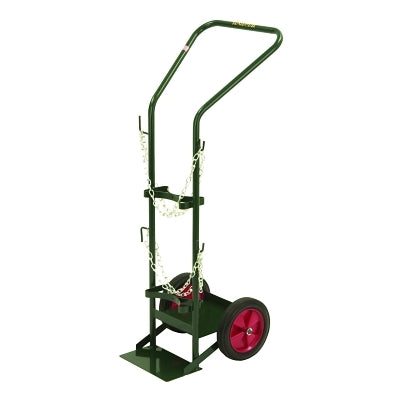

Series 830 Trucks, Holds 10.5"-12.5" Cylinders, 10 in Pneumatic, B.B. Wheels

Features

• Series 830 is a new design to accommodate a large oxygen cylinder in the back, and a large acetylene cylinder in the front
• This narrow design allows for better maneuverability in narrow aisles where a normal side-by-side cylinder truck cannot go
• SO-2 bolt on tool box is available as an option

Specifications

• Acetylene Cylinder [Max]: 12 1/2 in
• Base Plate:
  • 8 x 12 in, in front
  • 11 x 11 in, in back
• Bracket Chain Height:
  • 19 in
  • 34 in
• Color: Harper Green
• Handle Type: Continuous
• Height [Nom]: 49 in
• Oxygen Cylinder [Max]: 10 1/2 in
• Wheel Diam [Nom]: 10 in
• Wheel Type: Pneumatic, B.B.
• Wheel Width [Nom]: 3 1/2 in
• Width [Nom]: 20 in
• Wt.: 29 1/2 lb
