Home » SR 4 High Pressure Single Stage Piston Regulator, Inert Gas, 200 to 3000 psig Flow Range, 3000 psig Inlet Pressure
Victor

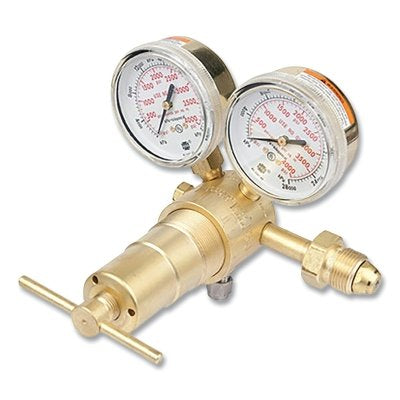

SR 4 High Pressure Single Stage Piston Regulator, Inert Gas, 200 to 3000 psig Flow Range, 3000 psig Inlet Pressure

SKU: A00113948 Barcode: 716352082686
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Victor
  • SKU A00113948
  • Barcode 716352082686
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin MX
  • Manufacture Part # 7811448

Features

  • High pressure
  • Dead-end testing
  • May be panel mounted
  • Single stage design
  • Piston type actuation

Specifications

  • Body Material: Machined Brass
  • Depth [Nom]: 6-1/4 in
  • Filter Material:
    • Bronze
    • Sintered
  • Flow Range: 200 - 3000 psig
  • Gas Type: Inert Gas
  • Height [Nom]: 6-1/2 in
  • Inlet Connection: CGA 580
  • Inlet Pressure [Max]: 3000 psig
  • Length [Nom]: 6 in
  • Outlet Pressure [Max]: 3000 psig
  • Outlet Pressure [Min]: 200 psig
  • Outlet Size: 1/4 in
  • Outlet Type: Swagelok
  • Width [Nom]: 6 in
