Home » SR 450 Series Single Stage Heavy Duty Regulator, Argon; Helium; Nitrogen, 3000 psig
Victor

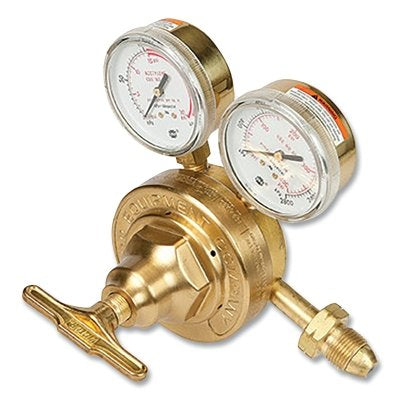

SR 450 Series Single Stage Heavy Duty Regulator, Argon; Helium; Nitrogen, 3000 psig

SKU: A00131340 Barcode: 716352000741
In stock

Payment details

  • American Express
  • Discover
  • Mastercard
  • Visa
  • Brand Victor
  • SKU A00131340
  • Barcode 716352000741
  • Unit of Measurement Each
  • Package Quantity 1 EA = 1 EA
  • Country of Origin MX
  • Manufacture Part # 7810528

Features

  • Medium to high gas service capacity
  • Single stage design
  • Stem type seat mechanism
  • Delrin cap bushing for smooth adjustments
  • External self reseating relief valve not designed to protect downstream apparatus

Specifications

  • Applications:
    • Cutting
    • Heating
    • Welding
  • Body Material: Forged Brass
  • Depth [Nom]: 5-1/8 in
  • Diaphragm Material: Stainless Steel
  • Diaphragm Size: 3-1/4 in
  • Filter Material:
    • Bronze
    • Sintered
  • Gas Type:
    • Argon
    • Helium
    • Nitrogen
  • Gauge Size: 2-1/2 in
  • Height [Nom]: 7 in
  • Inlet Connection: CGA 580
  • Inlet Pressure [Max]: 3000 psig
  • Length [Nom]: 7 in
  • Outlet Connection: 9/16 in - 18 RH(F)
  • Outlet Pressure [Max]: 125 psig
  • Outlet Pressure [Min]: 5 psig
  • Quantity: 1 EA / EA
  • Width [Nom]: 7-1/4 in
